LP-7 Series PWM Solar Charge Controller

Protections:

Battery overcharge protection

Battery over discharge protection

Battery reverse polarity protection

Load short circuit protection

Load overload protection

Instruction:

LP-7 series controller is a kind of intelligent, multi-purpose solar charge and discharge controller.

The family use the fixed LCD display,with a very friendly interface; various control parameters.

can be flexibly set,fully meet your various application requirements.

Features:

High efficiency Series PWM charging, increase battery lifetime and improve solar system performanceuSB output 5v DC power,implement the electronic charger

LCD display design, dynamically displaying device's operating data and working condition

Temperature compensation, correct charging and discharging parameters automatically

Humanized Key, more comfortable and convenient

Product Details

Create a boutique with heart

Feature/Model	LP-701	LP-702	LP-703		LP-705
Nominal System Voltage	≤50V
Rated current	10A	20A	30A	40A	50A	60A
Max.PV open circuit voltage	≤50V
Float charging voltage	13.7V/27.6V
Low voltage reconnect voltage	12.6V/25V
Low voltage disconnect voltage	10.7V/21.4V
USB output port	5V/3A
NO load loss	≤20mA
Loop voltage drop	≤170mA
Charge mode	PWM
Temp. compensation	-4mV/Cell/℃
Working temperature	-35C~+60℃
Storage temperature	-35℃~+70℃
Humidity temperature	≤95%N.C.
Display	LCD

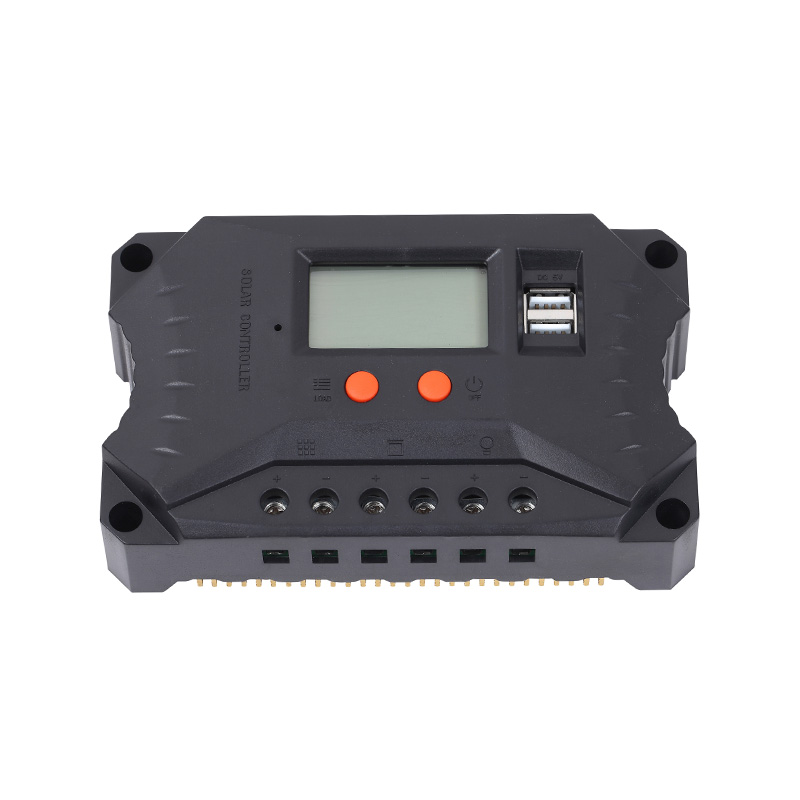

Model: LP-701

Work voltage: 12V/24V

Rated current: 10A

Dimension: 130x75x35mm

Net weight: 168g

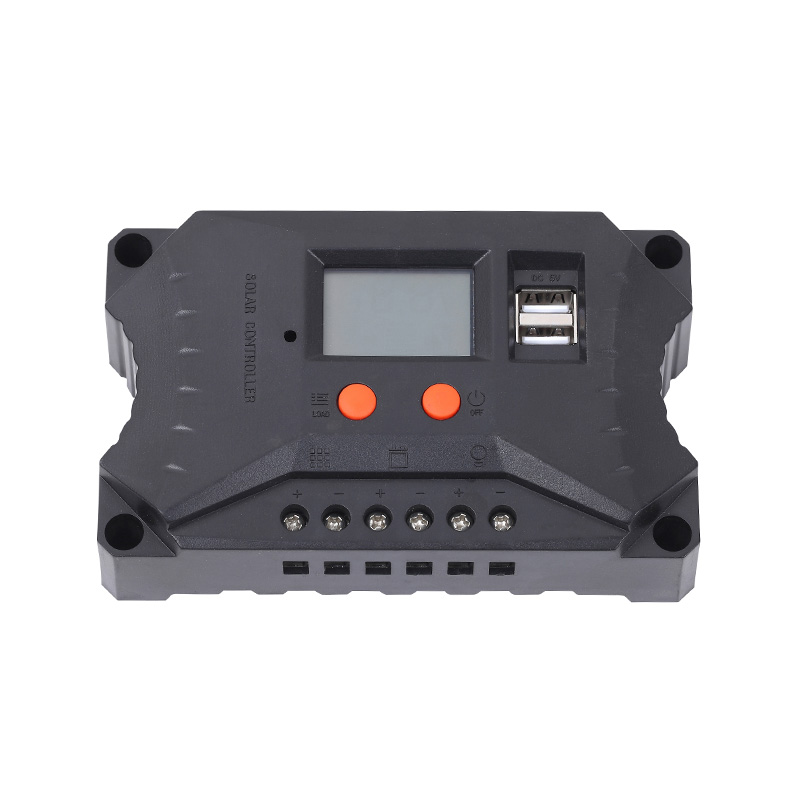

Model: LP-702

Work voltage: 12V/24V

Rated current: 20A

Dimension: 140x85x35mm

Net weight: 207g

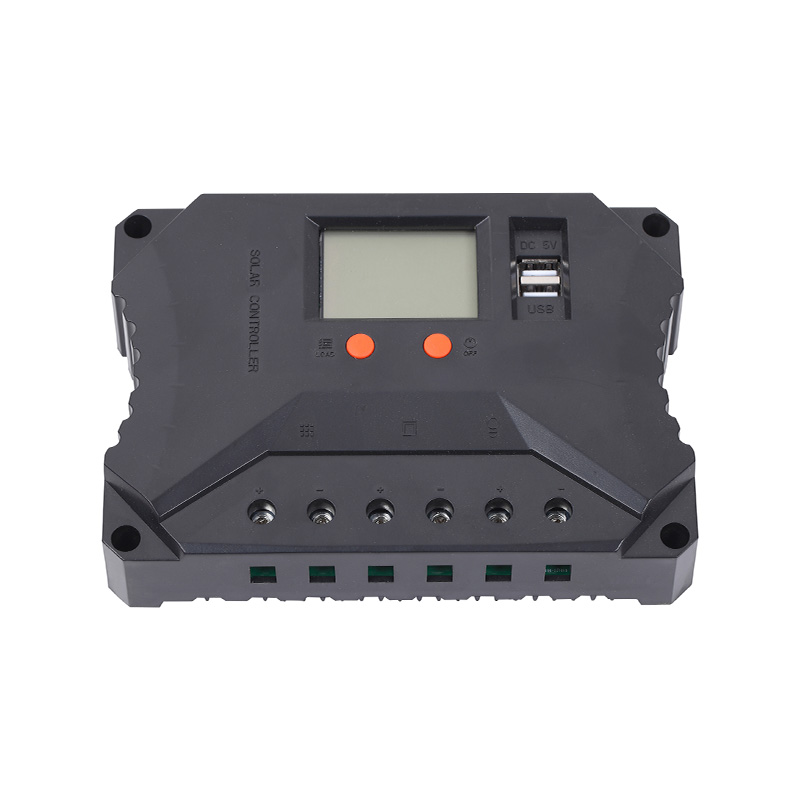

Model: LP-703

Work voltage: 12V/24V

Rated current: 30A/40A

Dimension: 160x10x40mm

Net weight: 323g

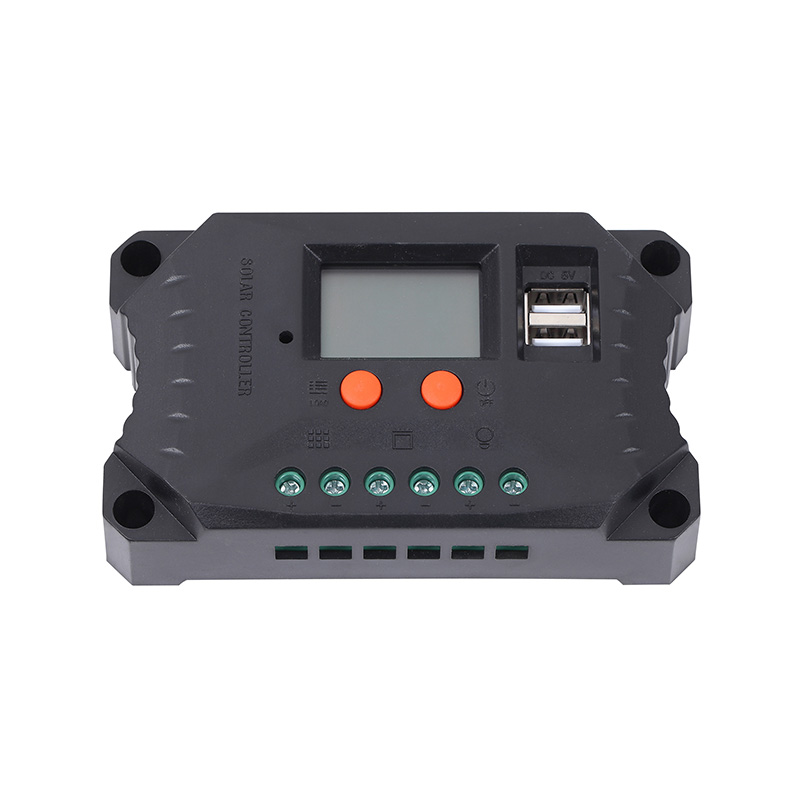

Model: LP-705

Work voltage: 12V/24V

Rated current: 50A/60A

Dimension: 185x127x40mm

Net weight: 500g
