LP-G Series PWM Solar Charge Controller

Protections:

Battery overcharge protection

Battery over discharge protection

Battery reverse polarity protection

Load short circuit protection

Load overload protection

Instruction:

LP-G series controller is a kind of intelligent, multi-purpose solar charge and discharge controller.

The family use the fixed LCD display, with a very friendly interface; various control parameters.

can be flexibly set,fully meet your various application requirements.

Features:

High efficiency Series PWM charging, increase battery lifetime and improve solar system performance

USB output 5v DC power, implement the electronic charger

LCD display design, dynamically displaying device's operating data and working condition

Temperature compensation, correct charging and discharging parameters automatically

Humanized Key,more comfortable and convenient

Product Details

Create a boutique with heart

Feature/Model	LP-G10		LP-G30		LP-G50
Nominal System Voltage	12/24V
Rated current	10A	20A	30A	40A	50A	60A
Max.PV open circuit voltage	≤50V
Float charging voltage	13.7V/27.6V
Low voltage reconnect voltage	12.6V/25V
Low voltage disconnect voltage	10.7V/21.4V
USB output port	5V/3A
NO load loss	≤20mA
Loop voltage drop	≤170mA
Charge mode	PWM
Temp. compensation	-4mV/Cell/℃
Working temperature	-35C~+60℃
Storage temperature	-35℃~+70℃
Humidity temperature	≤95%N.C.
Display	LCD

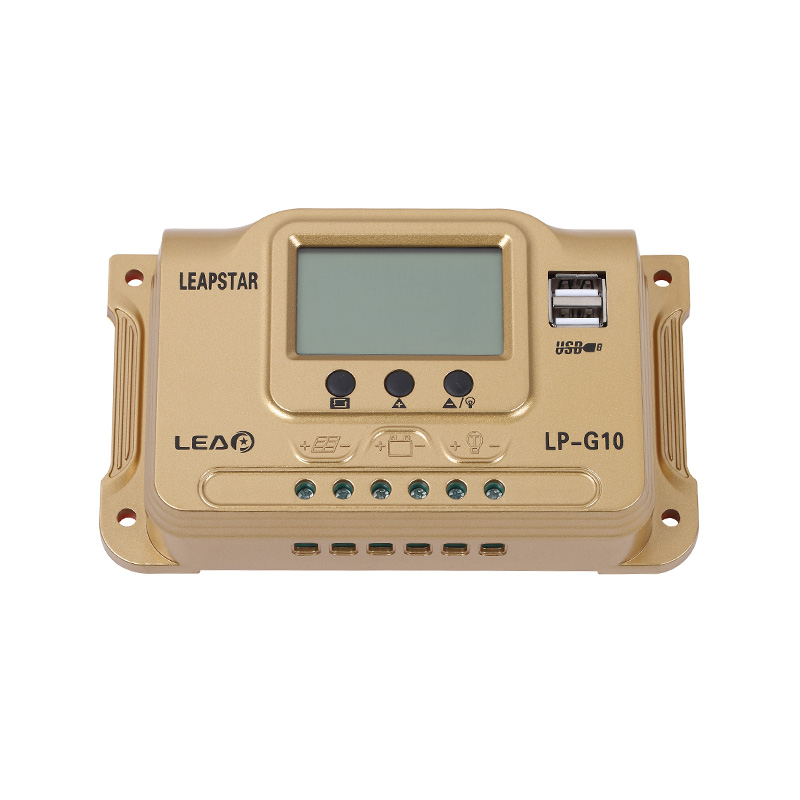

Model LP-G10

Work voltage: 12v/24V

Rated current: 10A/20A

Dimension: 156x90x40mm

Net weight: 210g

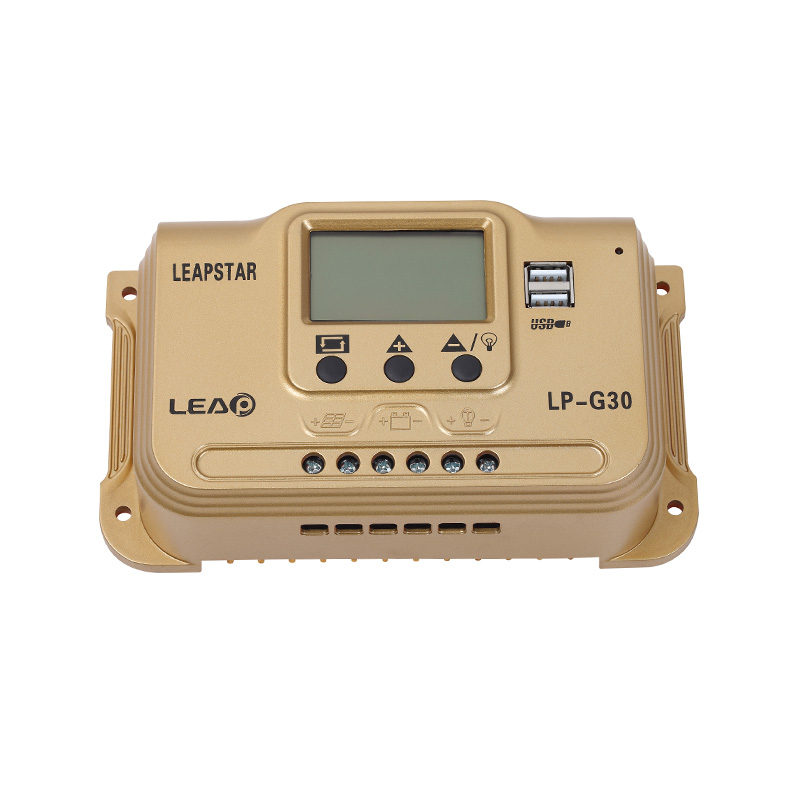

Model LP-G30

Work voltage: 12V/24V

Rated current 30A/40A

Dimension: 185x100x50mm

Net weight 510g

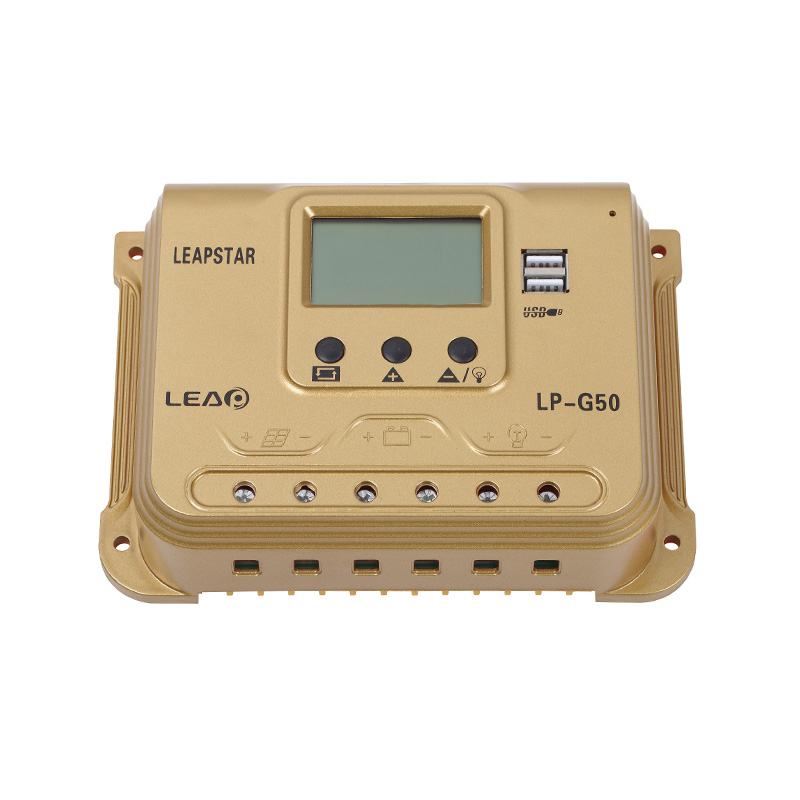

Model: LP-G50

Work voltage: 12V/24V

Rated current:50A/60A

Dimension: 185x128x50mm

Net weight: 648g
