LP-S Series PWM Solar Charge Controller

Protections:

Battery overcharge protection

Battery over discharge protection

Battery reverse polarity protection

Load short circuit protection

Load overload protection

Instruction:

LP-S series controller is a kind of intelligent,multi-purpose solar charge and discharge controller.

The family use the fixed LCD display, with a very friendly interface; various control parameters.

can be flexibly set,fully meet your various application requirements.

Features:

High efficiency Series PWM charging, increase battery lifetime and improve solar system performanceuSB output 5v DC power,implement the electronic charger

LCD display design, dynamically displaying device's operating data and working conditionTemperature compensation, correct charging and discharging parameters automaticallyHumanized Key,more comfortable and convenient

Product Details

Create a boutique with heart

Feature/Model	LP-S10		LP-S30		LP-S30
Nominal System Voltage	12/24V
Rated current	10A	20A	30A	40A	50A	60A
Max.PV open circuit voltage	≤50V
Float charging voltage	13.7V/27.6V
Low voltage reconnect voltage	12.6V/25V
Low voltage disconnect voltage	10.7V/21.4V
USB output port	5V/3A
NO load loss	≤20mA
Loop voltage drop	≤170mA
Charge mode	PWM
Temp. compensation	-4mV/Cell/℃
Working temperature	-35°C~+60℃
Storage temperature	-35°C~+70°C
Humidity temperature	≤95%N.C.
Display	LCD

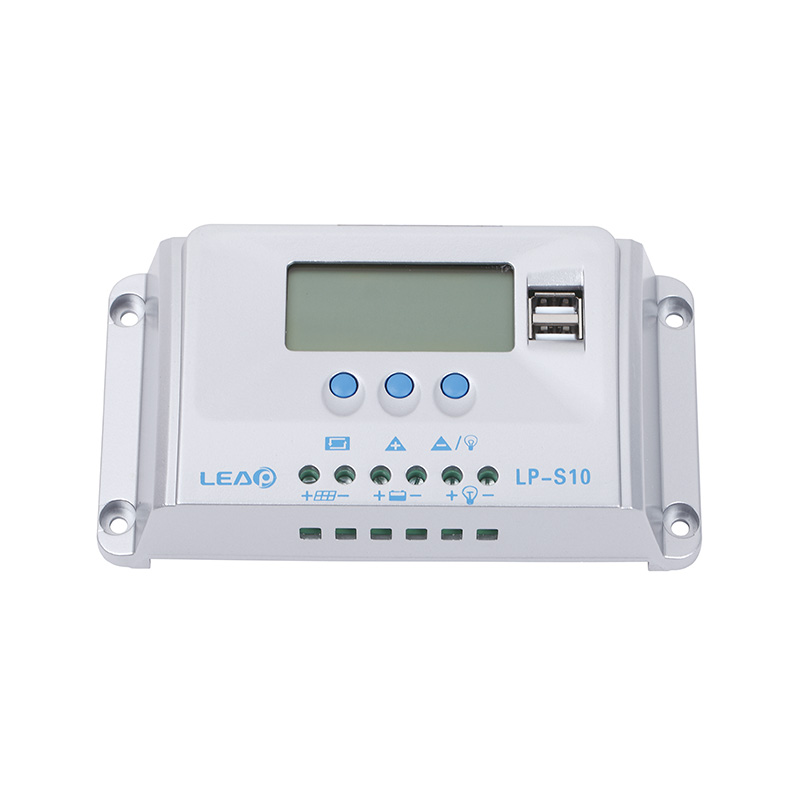

Model: LP-S10

Work voltage: 12V/24V

Rated current: 10A/20A

Dimension: 167x90x41mm

Net weight: 283g

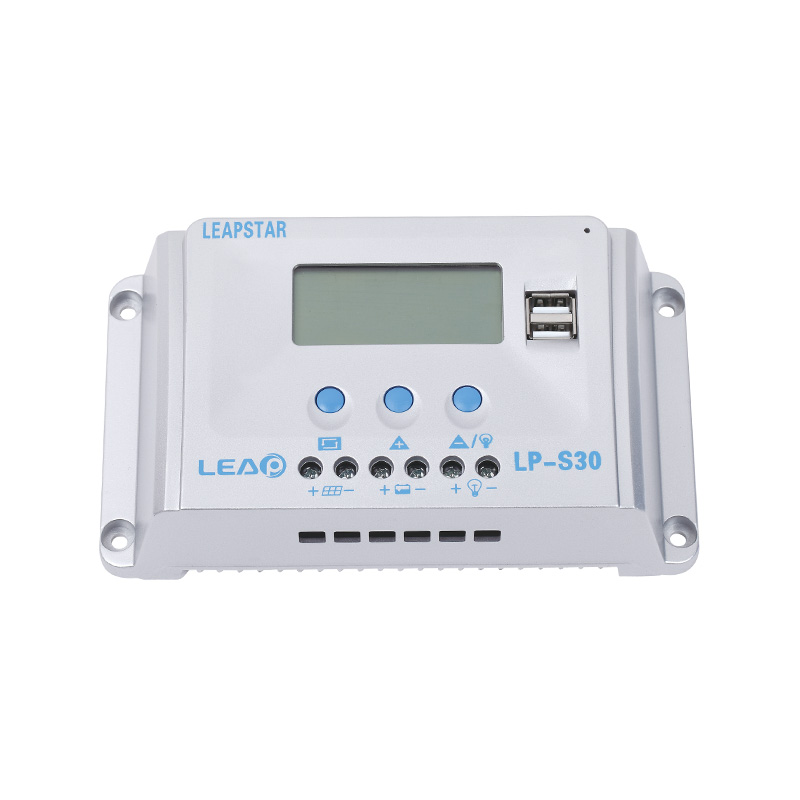

Model: LP-S30

Work voltage: 12V/24V

Rated current: 30A/40A

Dimension: 185x100x45mm

Net weight: 425g

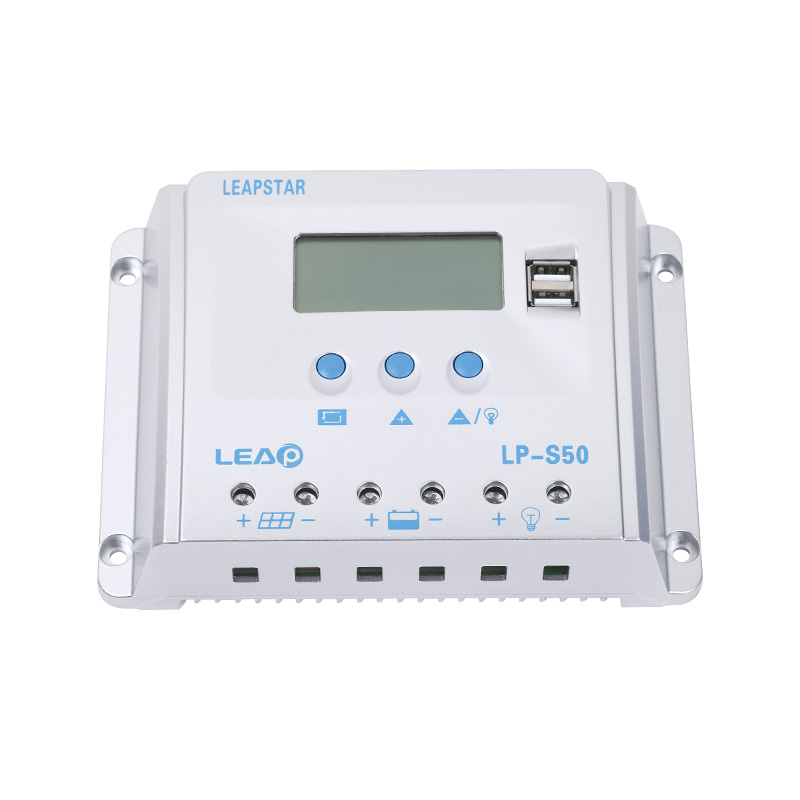

Model: LP-S50

Work voltage: 12V/24V

Rated current:50A/60A

Dimension: 180x130x45mm

Net weight: 528g
